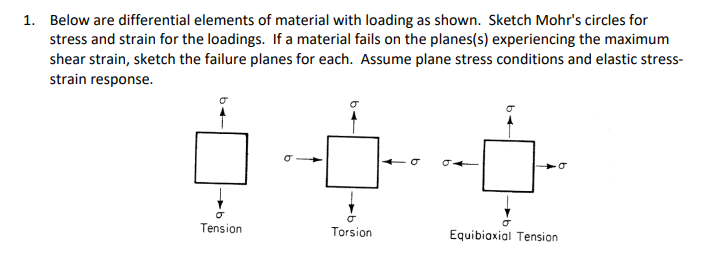

1. Below are differential elements of material with loading as shown. Sketch Mohr's circles for stress and strain for the loadings. If a material fails on the planes(s) experiencing the maximum shear strain, sketch the failure planes for each. Assume plane stress conditions and elastic stress- strain response. σ στ 04 Tension Torsion Equibiaxial Tension
