Question

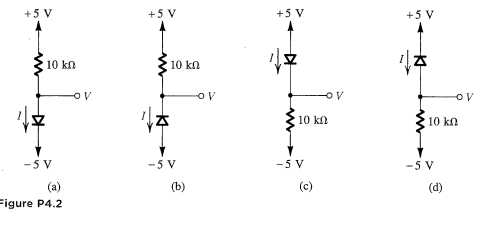

4.2 For the circuits shown in Fig. P4.2 using ideal diodes, find the values of the voltages and currents indicated./n+5 V 10 kn -5 V (a) Figure P4.2 ov +5 V 10 kn -5 V (b) -OV +5 V 10 kn -5 V -OV (c) +5 V 10 ΚΩ -5 V -OV (d)
Question image 1Question image 2
