Question

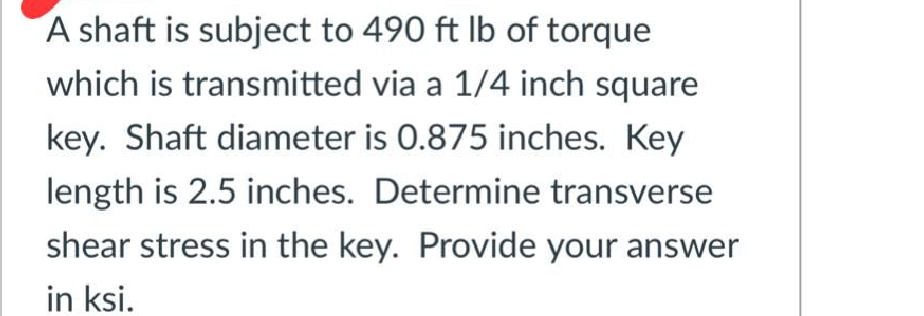

A shaft is subject to 490 ft Ib of torque which is transmitted via a 1/4 inch square key. Shaft diameter is 0.875 inches. Key length is 2.5 inches. Determine

transverse shear stress in the key. Provide your answer in ksi.

Question image 1Question image 2
