Question

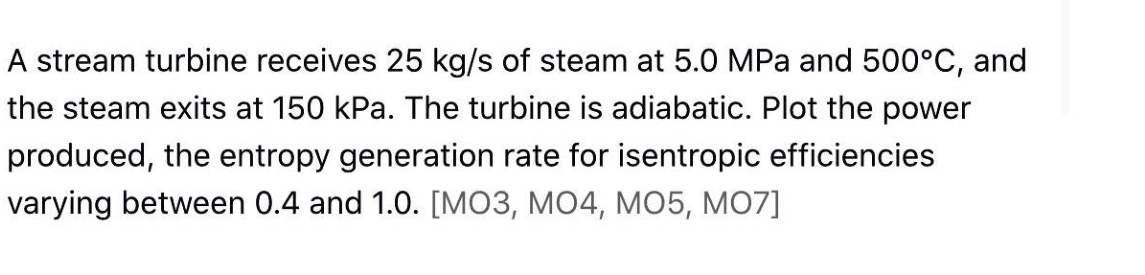

A stream turbine receives 25 kg/s of steam at 5.0 MPa and 500°C, and the steam exits at 150 kPa. The turbine is adiabatic. Plot the power produced, the entropy generation rate for isentropic efficiencies varying between 0.4 and 1.0. [MO3, MO4, MO5, MO7]

Question image 1
