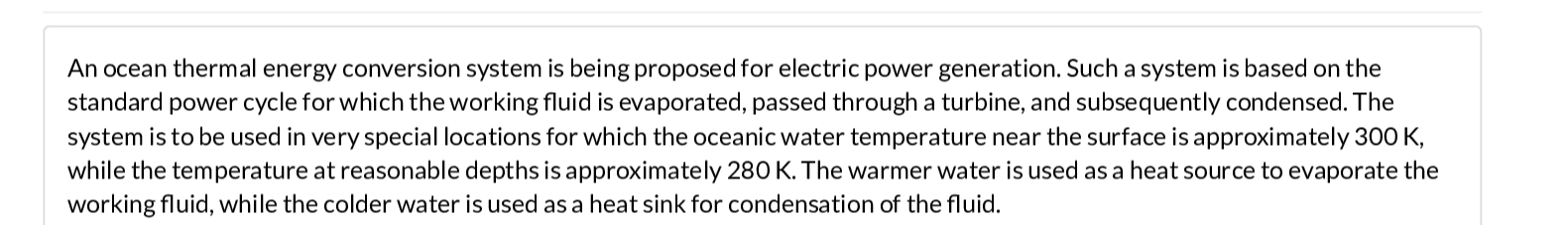

An ocean thermal energy conversion system is being proposed for electric power generation. Such a system is based on the standard power cycle for which the working fluid is evaporated,

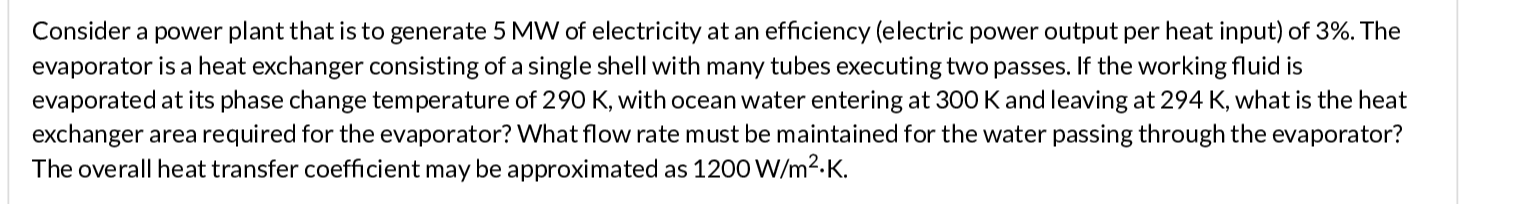

passed through a turbine, and subsequently condensed. The system is to be used in very special locations for which the oceanic water temperature near the surface is approximately 300 K,while the temperature at reasonable depths is approximately 280 K. The warmer water is used as a heat source to evaporate the working fluid, while the colder water is used as a heat sink for condensation of the fluid. Consider a power plant that is to generate 5 MW of electricity at an efficiency (electric power output per heat input) of 3%. The evaporator is a heat exchanger consisting of a single shell with many tubes executing two passes. If the working fluid is evaporated at its phase change temperature of 290 K, with ocean water entering at 300 K and leaving at 294 K, what is the heat exchanger area required for the evaporator? What flow rate must be maintained for the water passing through the evaporator?The overall heat transfer coefficient may be approximated as 1200 W/m2.K. Physical Properties Mathematical Functions What is the rate of heat transfer for the evaporator, in W? What is the capacity rate on the hot side, in W/K? What is the number of transfer units, N T U? What is the heat exchanger area, in m? What is the water flow rate through the evaporator, in kg/s?
