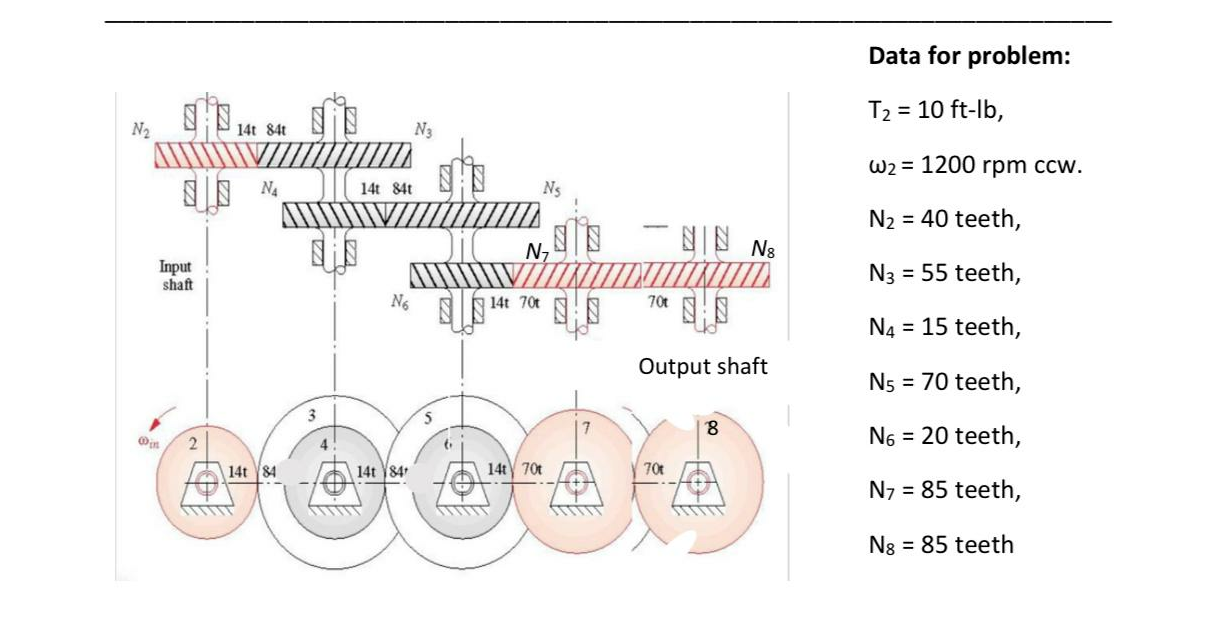

From the above figure and Data, determine the following. Answers without work will not be accepted. Identify the Gear Sets. Determine the gear train velocity ratio. Show your work. Determine the gear train torque ratio Show your work . Determine the angular velocity of the output gear, Gear 8, and direction, cw or ccw. What is the purpose of gear 8? Determine the output torque on gear 8. With a 90% efficiency what is the actual torque output?
