Question

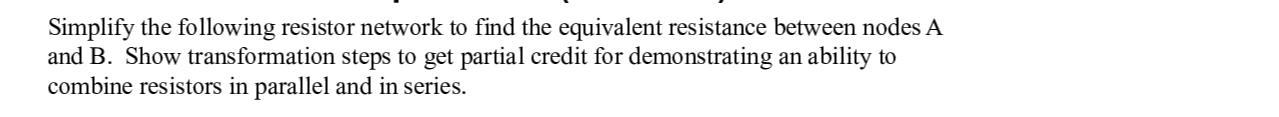

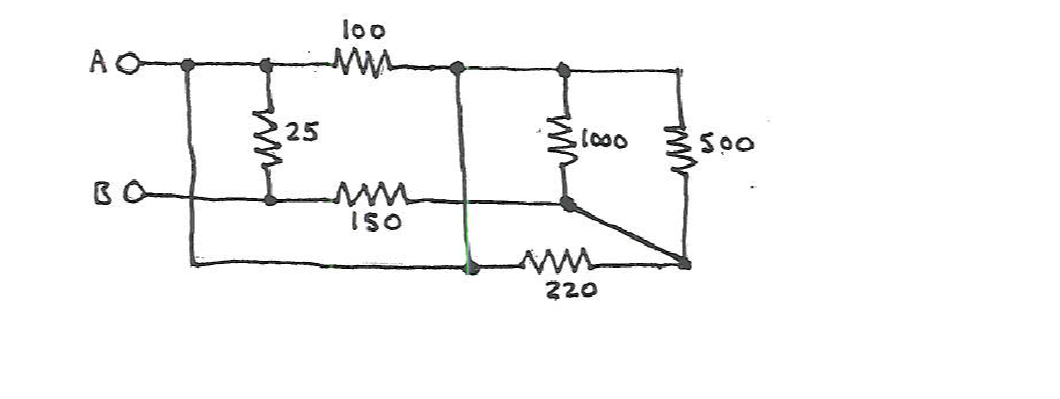

Simplify the following resistor network to find the equivalent resistance between nodes Aand B. Show transformation steps to get partial credit for demonstrating an ability to combine resistors in parallel and in series.
