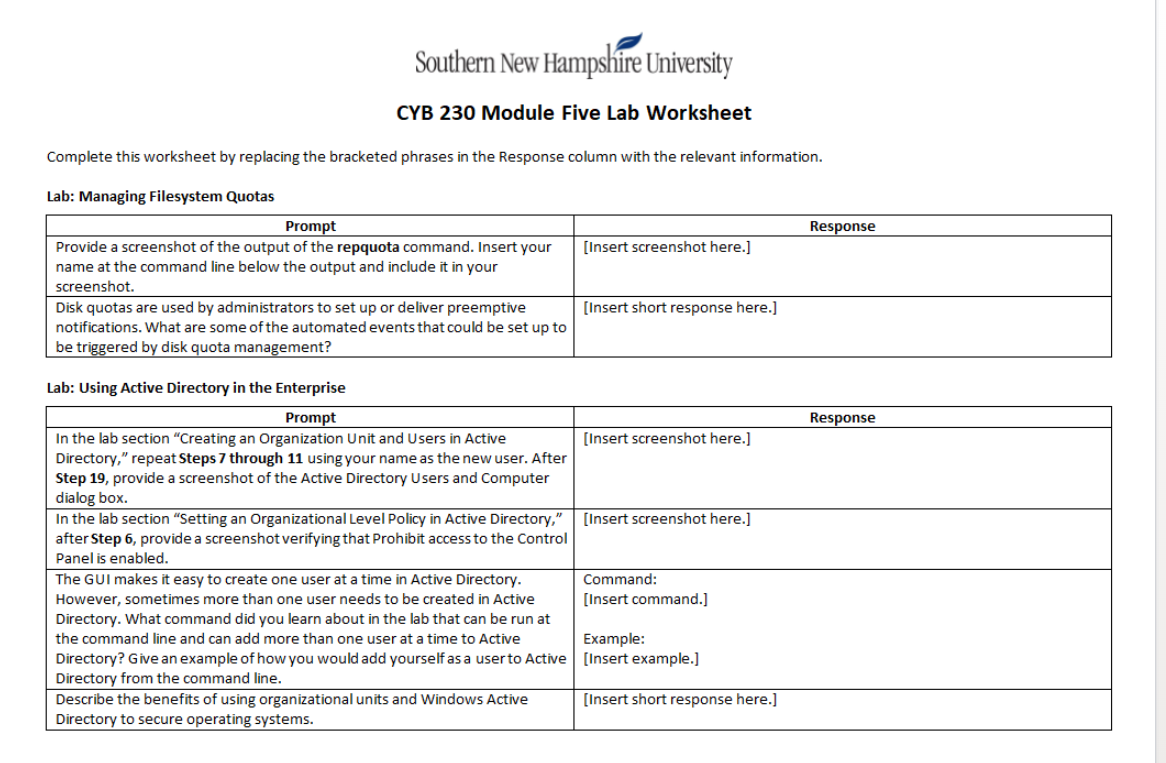

Southern New Hampshire University
CYB 230 Module Five Lab Worksheet
Complete this worksheet by replacing the bracketed phrases in the Response column with the relevant information.
Lab: Managing Filesystem Quotas
Prompt
Provide a screenshot of the output of the repquota command. Insert your
name at the command line below the output and include it in your
screenshot.
Disk quotas are used by administrators to set up or deliver preemptive
notifications. What are some of the automated events that could be set up to
be triggered by disk quota management?
Lab: Using Active Directory in the Enterprise
Prompt
In the lab section "Creating an Organization Unit and Users in Active
Directory," repeat Steps 7 through 11 using your name as the new user. After
Step 19, provide a screenshot of the Active Directory Users and Computer
dialog box.
Response
[Insert screenshot here.]
[Insert short response here.]
Response
[Insert screenshot here.]
In the lab section "Setting an Organizational Level Policy in Active Directory," [Insert screenshot here.]
after Step 6, provide a screenshot verifying that Prohibit access to the Control
Panel is enabled.
The GUI makes it easy to create one user at a time in Active Directory.
However, sometimes more than one user needs to be created in Active
Directory. What command did you learn about in the lab that can be run at
the command line and can add more than one user at a time to Active
Directory? Give an example of how you would add yourself as a user to Active
Directory from the command line.
Describe the benefits of using organizational units and Windows Active
Directory to secure operating systems.
Command:
[Insert command.]
Example:
[Insert example.]
[Insert short response here.]/n INFOSEC
LEARNINGZ
SNHU - Managing Filesystem Quotas
Introduction
Objective
In this lab, you will perform the following tasks:
1
Prepare a filesystem for quotas.
2 Implement filesystem quotas.
3 Report on filesystem quotas.
Overview
This lab provides guidance on performing Managing Filesystem Quotas of the Linux+. By
performing this lab, students will learn how to create and implement filesystem quotas on a
Linux system.
Edit the /etc/fstab File
In this task, we will edit the /etc/fstab file to enable user quotas.
1
Click on the Start button in the adjoining window to initialize the virtual
environment. 2
Fedora Workstation
192.168.1.3
START
Click on the Fedora Workstation icon in the pod topology to launch the virtual
machine.
Fedora Workstation
192.168.1.3 3
Enter the password of P@ssword and press .
Note: The password will be masked and not be displayed when entered.
fedora
8.
4
sysadmin
Session Type
Є Menu
Welcome to localhost.localdomain
Once logged in, you will see the following screen for about 20 seconds before the
system automatically redirects you to the desktop. fedora
f
K
5 Right-click the Desktop and Select the Konsole icon to launch a terminal
window.
Konsole
Run Command...
Add Widgets...
+ Add Panel
Activities...
Lock Widgets
Lock Screen
Leave...
Alt+D, A
>
Alt+D, Alt+A
Alt+D, L
Desktop Settings Alt+D, Alt+S 6
Because most of the commands that you will run in this lab require superuser rights,
use the su command to switch to the root account. When prompted for the
password, type P@ssword.
[sysadmin@localhost ~]$ su
-
root
Password: P@ssword
Your output should be similar to the following.
Note: The password will be masked and not be displayed when entered.
/home/sysadmin: bash
File Edit View Bookmarks Settings Help
[sysadmin@localhost ~]$ su - root
Password:
[root@localhost ~]# |
7
The first step to enable quotas is to edit the /etc/fstab file. In Linux, the /etc/fstab
file controls the filesystems that are mounted at boot time for the system. To edit the
/etc/fstab file, type the following into the terminal window and hit .
[root@localhost ~]# vi /etc/fstab
/home/sysadmin: bash
File Edit View Bookmarks Settings Help
[root@localhost ~]# vi /etc/fstab||/n INFOSEC
LEARNING
SNHU - Using Active Directory in the
Enterprise
Introduction
Objective
CompTIA Security+ Domain:
Domain 5: Access Control and Identity Management
CompTIA Security+ Objective Mapping:
Objective 5.1: Compare and contrast the function and purpose of authentication services.
Objective 5.2: Given a scenario, select the appropriate authentication, authorization, or access
control.
Objective 5.3: Install and configure security control when performing account management
based on best practices.
Overview
Active Directory is a database, which can be used to centrally manage a Microsoft Windows
network. In this lab, you will examine the Active Directory Users and Computers interface.
Key Term
organizational unit
dsa.msc
Active Directory Users and
Computers
Net user
Description
An Active Directory container that can hold users, groups,
and computers.
the command to open Active Directory Users and
Computers
database which can be used to centrally manage a
Windows network
A Built in Windows command to manage and create
users
gpupdate
the command to update group policy Creating an Organization Unit and Users in Active Directory
1
Click on the Windows Server icon in the network topology. After the machine finishes
booting, click the CTRL-ALT-DELETE button in the upper-right corner.
Time remaining: 86:59
STOP
Windows Server
192.168.1.10 Send Ctrl+Alt+Delete
INT-SERVER-FINAL-SECPLUS-LAB15
2
Press CTRL + ALT + DELETE to log on
Note: If the screen remains blank after allowing a minute for sufficient boot-up time,
click on the screen.
Log on as administrator with the password of P@ssword, then click the arrow. M
Command
Prompt
administrator
P@ssword
Log on to: CAMPUS
How do I log on to another domain?
Cancel
Windows Server 2008
Standard
Double-click on the Command Prompt shortcut on the Windows Server 2008
desktop.
Google Chrome
Windows Server 2008 4
Type the following command to open the Active Directory Users and Computers
interface, then press Enter.
C:\>dsa.msc
C. Administrator: Command Prompt
Microsoft Windows [Version 6.0.6001]
Copyright (c) 2006 Microsoft Corporation. All rights reserved.
C:\dsa.msc
C:\>
Active Directory Users and Computers
File Action View Help
1++
Туре
Description
Saved Queries
campus.edu
Folder to store your favor...
Domain
Active Directory Users and Comput Name
Saved Queries
campus.edu
5 Right-click on the campus.edu domain and select New, then select Organizational
Unit.
