Question

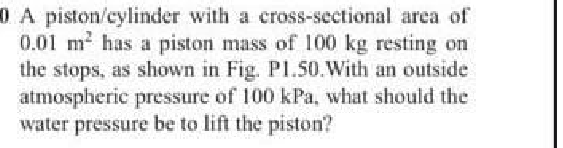

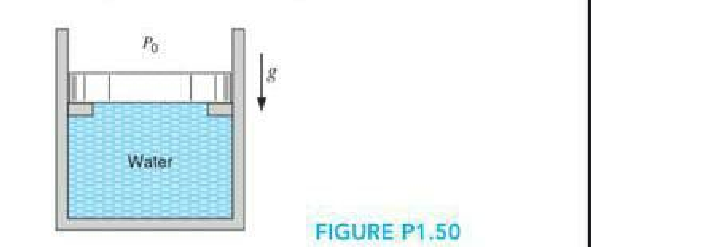

0 A piston/cylinder with a cross-sectional area of0.01 m has a piston mass of 100 kg resting on the stops, as shown in Fig. Pl.50.With an outside atmospheric pressure of

100 kPa, what should the water pressure be to lift the piston?

Question image 1Question image 2
