Question

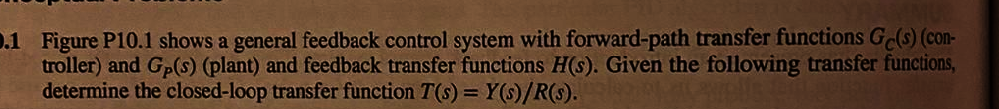

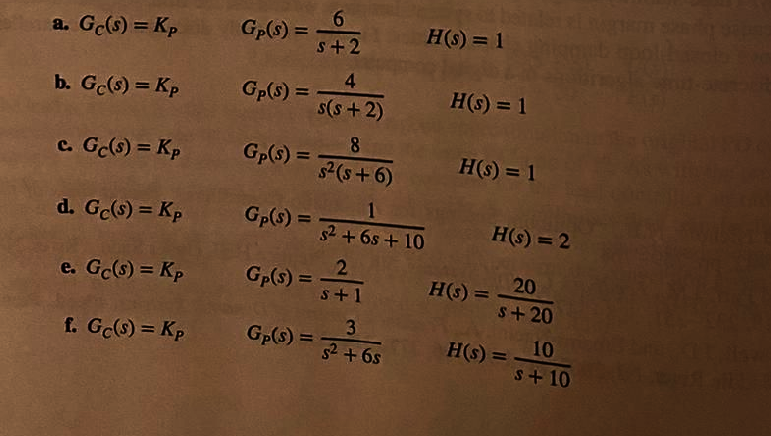

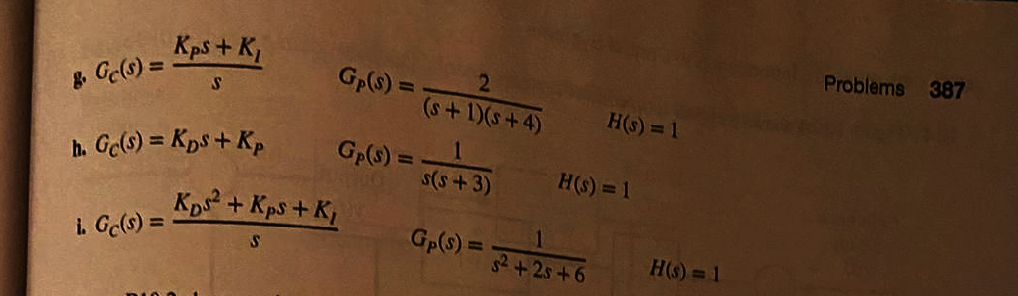

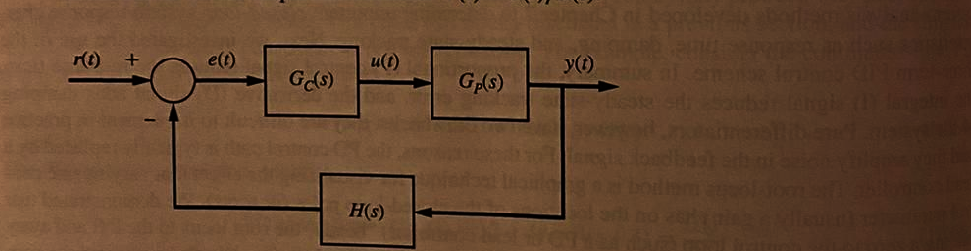

0.1 Figure P10.1 shows a general feedback control system with forward-path transfer functions G (s) (con-troller) and Gp(s) (plant) and feedback transfer functions H(s). Given the following transfer functions,determine the

closed-loop transfer function T(s) = Y(s)/R(s).

Question image 1Question image 2Question image 3Question image 4
