Question

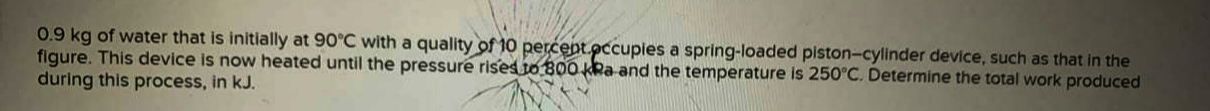

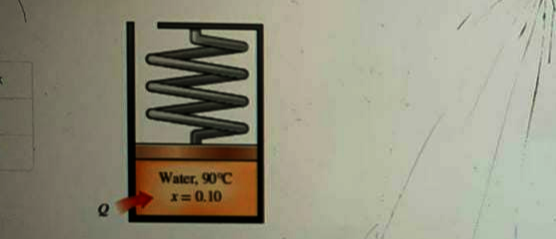

0.9 kg of water that is initially at 90°C with a quality of 10 percent occupies a spring-loaded piston-cylinder device, such as that in the figure. This device is now

heated until the pressure rises to 800 KRa and the temperature is 250°C. Determine the total work produced during this process, in kJ. The total work produced is ---kJ.

Question image 1Question image 2Question image 3
