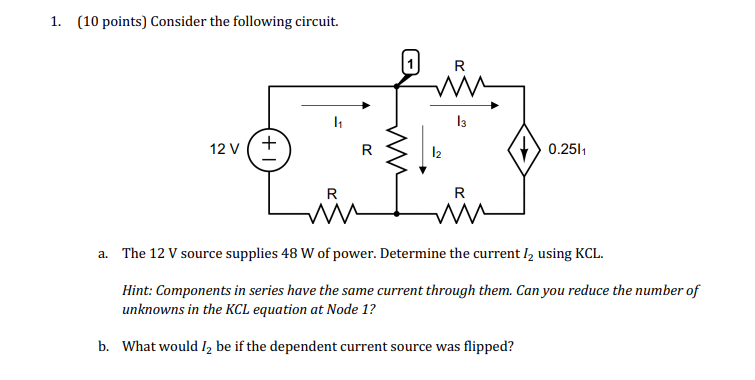

1. (10 points) Consider the following circuit.

12 V +

1₁

R

M

13

12

R

0.251₁

ий

a. The 12 V source supplies 48 W of power. Determine the current /2 using KCL.

Hint: Components in series have the same current through them. Can you reduce the number of

unknowns in the KCL equation at Node 1?

b. What would I₂ be if the dependent current source was flipped?
