Question

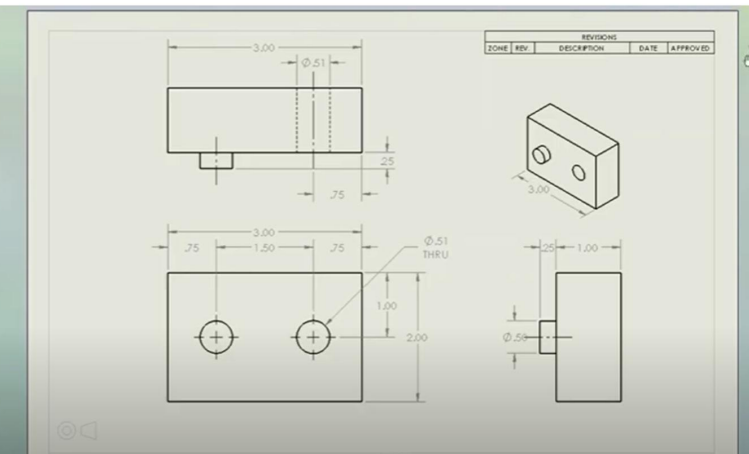

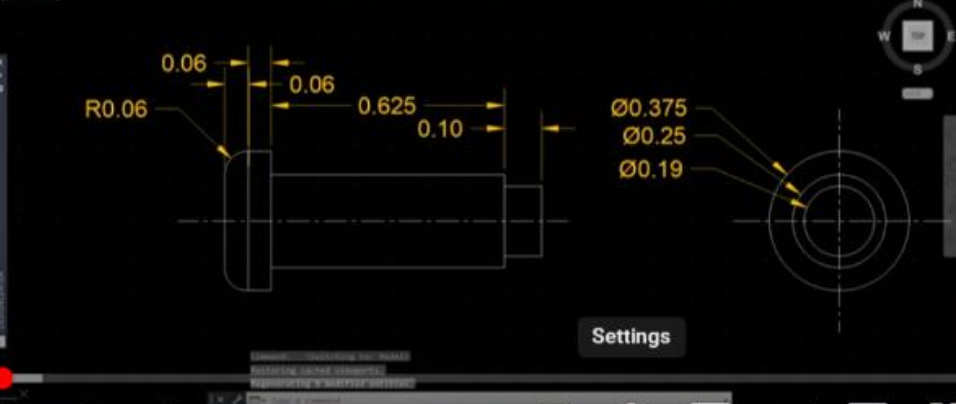

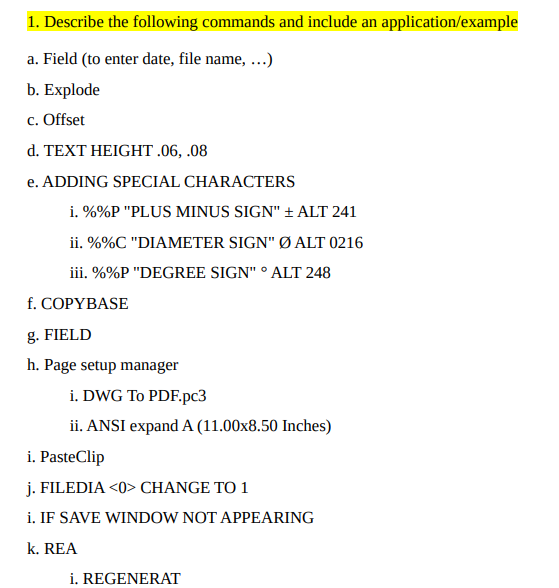

1. Describe the following commands and include an application/example a. Field (to enter date, file name, ...) b. Explode c. Offset d. TEXT HEIGHT.06, .08 e. ADDING SPECIAL CHARACTERS i. %%P "PLUS MINUS SIGN" ± ALT 241 ii. %%C "DIAMETER SIGN" Ø ALT 0216 iii. %%P "DEGREE SIGN" ALT 248 f. COPYBASE g. FIELD h. Page setup manager i. DWG To PDF.pc3 ii. ANSI expand A (11.00x8.50 Inches) i. PasteClip j. FILEDIA <0> CHANGE TO 1 i. IF SAVE WINDOW NOT APPEARING k. REA i. REGENERAT/n3.00 REVISIONS ZONE REV DESCRIPTION DATE APPROVED 051 75 15 -3.00 75 1.50 75 0.51 THRU 3.00 1.00 2.00 0.56/nR0.06 0.06 0.06 0.625 00.375 0.10 00.25 00.19 Settings
Question image 1Question image 2Question image 3
