Question

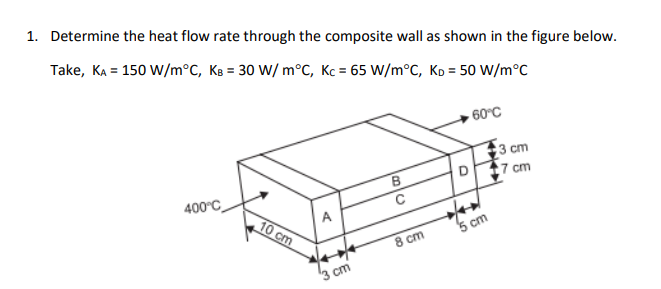

1. Determine the heat flow rate through the composite wall as shown in the figure below. Take, KA = 150 W/m°C, KB = 30 W/m°C, Kc = 65 W/m°C, KD = 50 W/m°C 400°C 10 cm 60°C A BC 3 cm D 7 cm 8 cm 5 cm 3 cm
Question image 1
