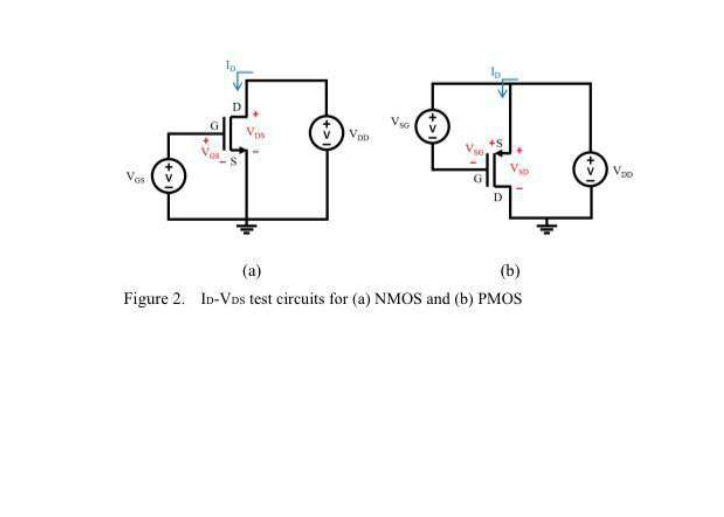

1. Draw your circuit for ID-VDs measurement of NMOS.

Label all currents and voltages.

2. How will the value of the current be obtained? Provide any relevant equation.

3. Draw your circuit for ID-VSD measurement of PMOS.

Label all currents and voltages.

4. How will the value of the current be obtained? Provide any relevant equation.

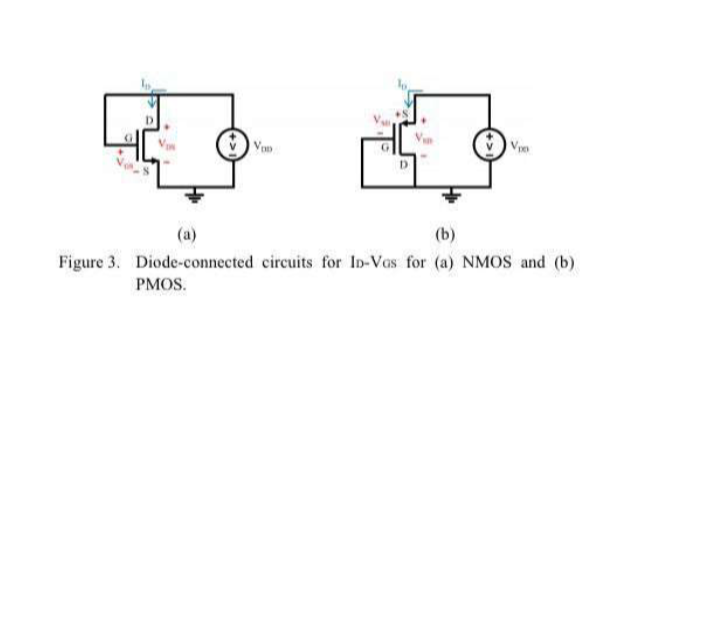

5. Draw your circuit for ID-Vos measurement of NMOS.

Label all currents and voltages.

6. How will the value of the current be obtained? Provide any relevant equation.

7. Draw your circuit for Ip-Vso measurement of PMOS.

Label all currents and voltages.

8. How will the value of the current be obtained? Provide any relevant equation.

9. Read the datasheet from ALD1103 for the NMOS device and complete Table 1. with the

minimum, typical and maximum values of the parameters given.
