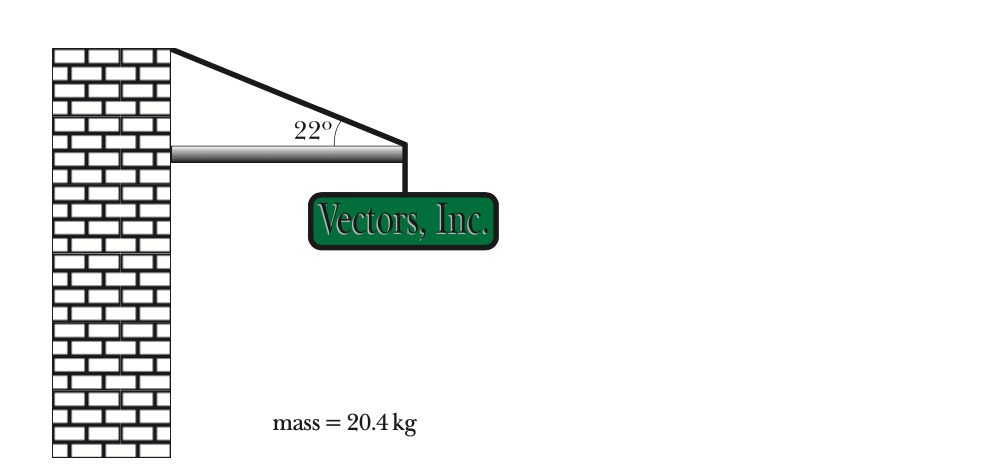

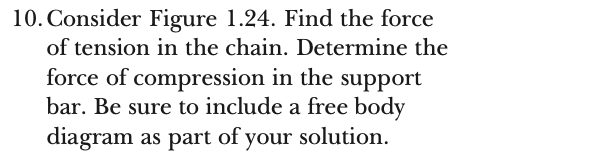

10. Consider Figure 1.24. Find the force of tension in the chain. Determine the force of compression in the support bar. Be sure to include a free body diagram as

part of your solution.
