Question

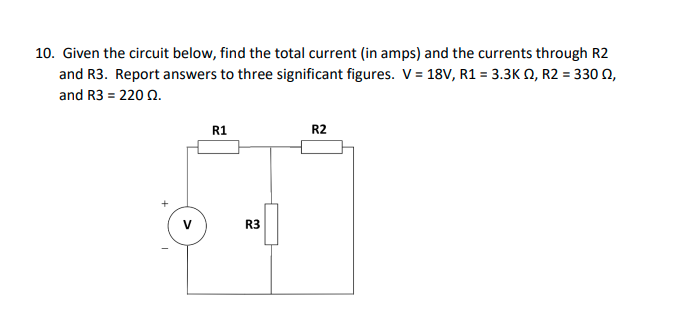

10. Given the circuit below, find the total current (in amps) and the currents through R2

and R3. Report answers to three significant figures. V = 18V, R1 = 3.3K 0, R2 = 3300,

and R3 = 220 22.

V

R1

R3

R2

Question image 1
