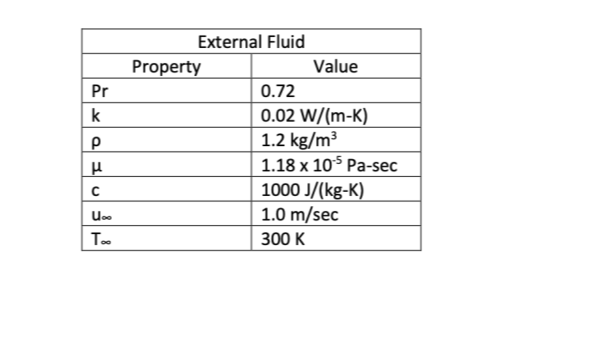

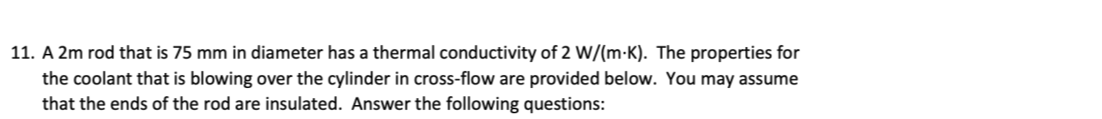

11. A 2m rod that is 75 mm in diameter has a thermal conductivity of 2 W/(m-K). The properties for the coolant that is blowing over the cylinder in cross-flow are provided below. You may assume that the ends of the rod are insulated. Answer the following questions: A) With a surface temperature of 375K, what is the volumetric heat flux, ġ, inside the rod? B) Under this same 375K surface temperature condition, what is the maximum temperature in the rod?

Question image 1Question image 2Question image 3Question image 4
