Question

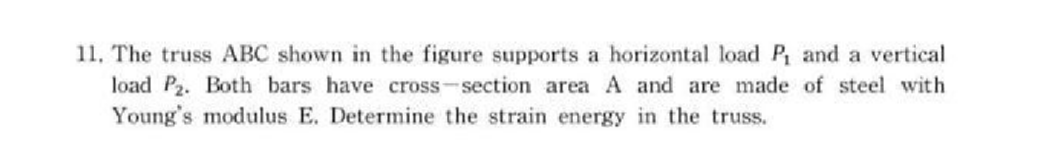

11. The truss ABC shown in the figure supports a horizontal load P and a vertical load P2. Both bars have cross-section area A and are made of steel with

Young's modulus E. Determine the strain energy in the truss.
