Question

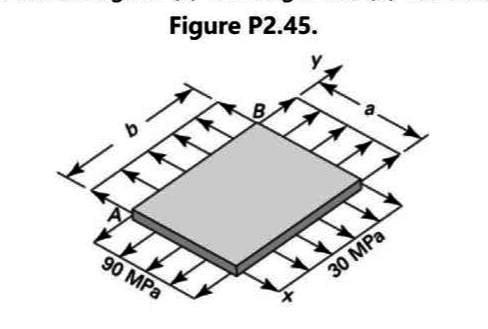

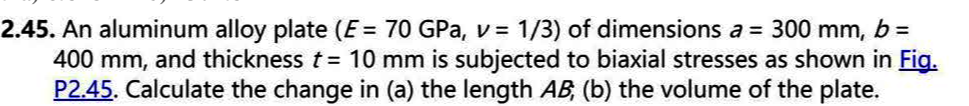

2.45. An aluminium alloy plate (E = 70 GPa, v = 1/3) of dimensions a = 300 mm, b=400 mm, and thickness t = 10 mm is subjected to bi axial stresses as shown in Fig. P2.45. Calculate the change in (a) the length AB, (b) the volume of the plate.

Question image 1Question image 2
