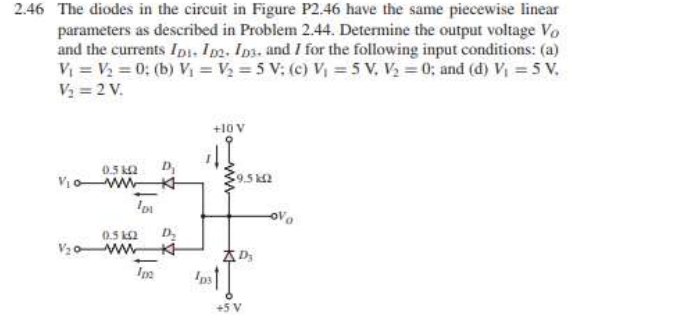

2.46 The diodes in the circuit in Figure P2.46 have the same piecewise linear

parameters as described in Problem 2.44. Determine the output voltage Vo

and the currents Ipi. Ip2. Ips. and I for the following input conditions: (a)

V₁ = V₂ = 0; (b) V₁ = V₂ = 5 V; (c) V₁ = 5 V. V₂ = 0; and (d) V₁ = 5 V.

V₂ = 2 V.

0.5 k

V₁oWw

DI

V₂0 ww

D₂

1p

KH

0.5k02 D₂

A.P

+10 V

Ips

9.5k2

D₂

+5 V

-ovo
