Question

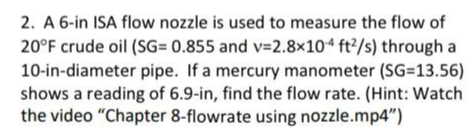

2. A 6-in ISA flow nozzle is used to measure the flow of20°F crude oil (SG= 0.855 and v=2.8x104 ft2/s) through a10-in-diameter pipe. If a mercury manometer (SG=13.56)shows a reading

of 6.9-in, find the flow rate. (Hint: Watch the video "Chapter 8-flowrate using nozhttps://media.tutorbin.com/media/projectX/Mechanical_Engineering/System_Dynamics/QuestionX/6aecb57e-b8c3-466a-adf3-a63c715665a3.pngzle.mp4")

Question image 1
