Question

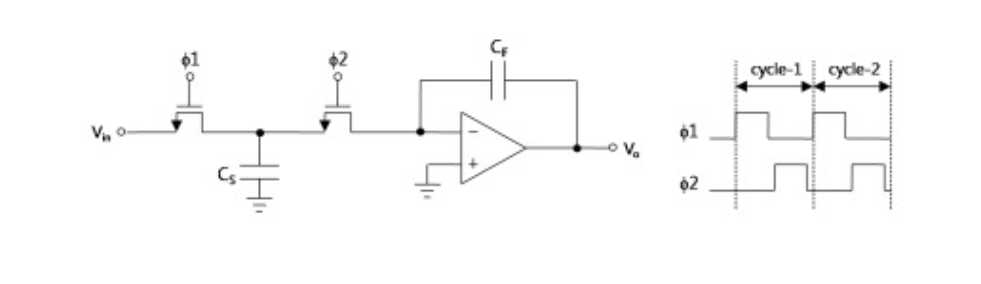

2. A switched-capacitor integrator and the control clocks for the switches are shown below.

In case V₁ = 1V, Cs=1pF, and CF = 2pF, what is the output voltage Vout after 5 operation

cycles? Assume there is no initial charge stored in both capacitors.

Question image 1
