Question

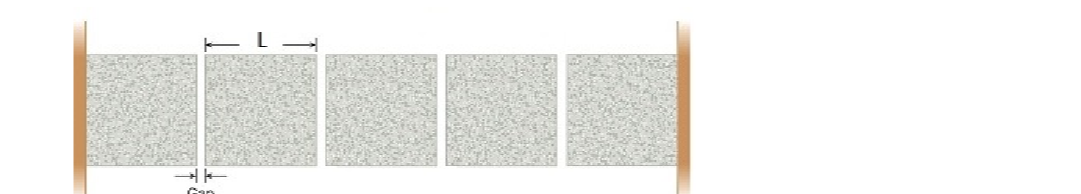

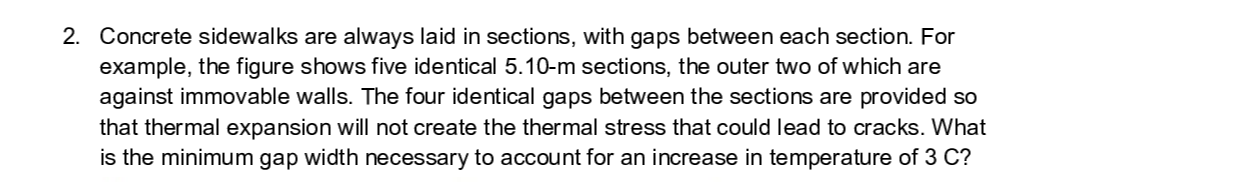

2. Concrete sidewalks are always laid in sections, with gaps between each section. For example, the figure shows five identical 5.10-m sections, the outer two of which are against immovable walls. The four identical gaps between the sections are provided so that thermal expansion will not create the thermal stress that could lead to cracks. What is the minimum gap width necessary to account for an increase in temperature of 3 C?

Question image 1Question image 2
