2)

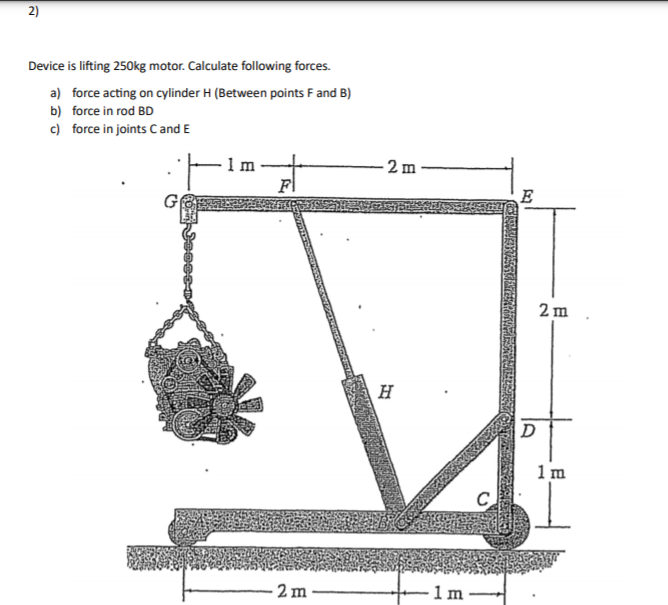

Device is lifting 250kg motor. Calculate following forces.

a) force acting on cylinder H (Between points F and B)

b) force in rod BD

c) force in joints C and E

1m

- 2 m

2m

H

-1m

E

2 m

D

T

1 m
