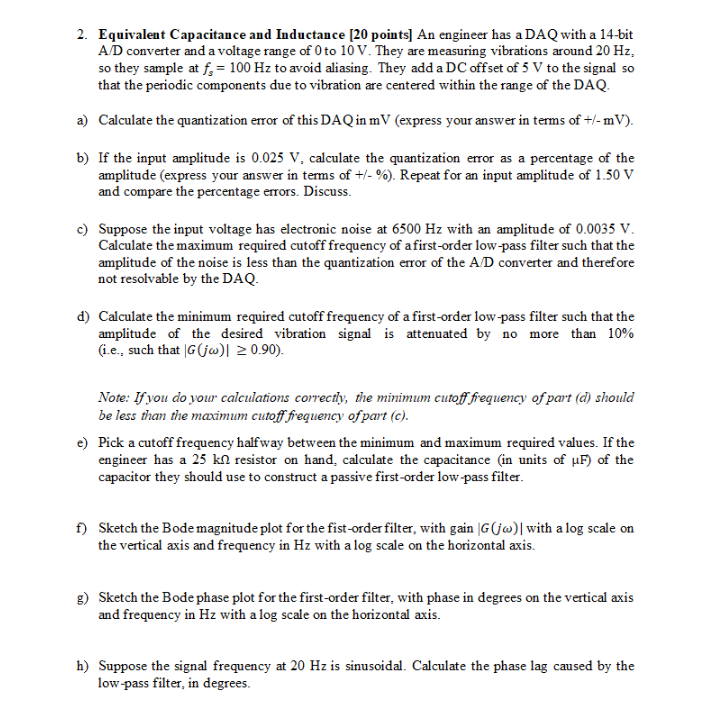

2. Equivalent Capacitance and Inductance [20 points] An engineer has a DAQ with a 14-bit A/D converter and a voltage range of 0 to 10 V. They are measuring vibrations around
