Question

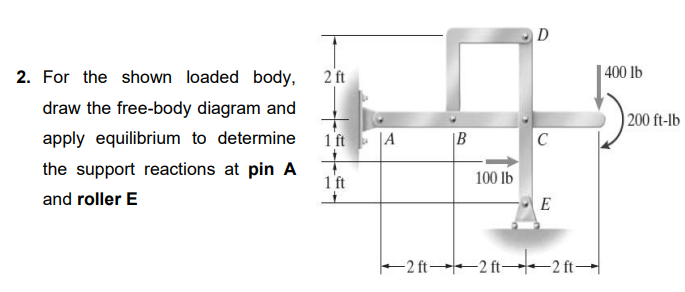

2. For the shown loaded body, draw the free-body diagram and apply equilibrium to determine the support reactions at pin A and roller E 2 ft D 400 lb 200 ft-lb B C 1 ft 100 lb E -2 ft 2 ft 2 ft
Question image 1
