Question

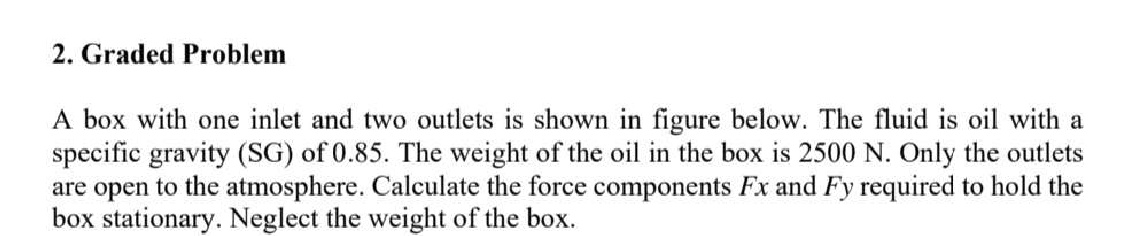

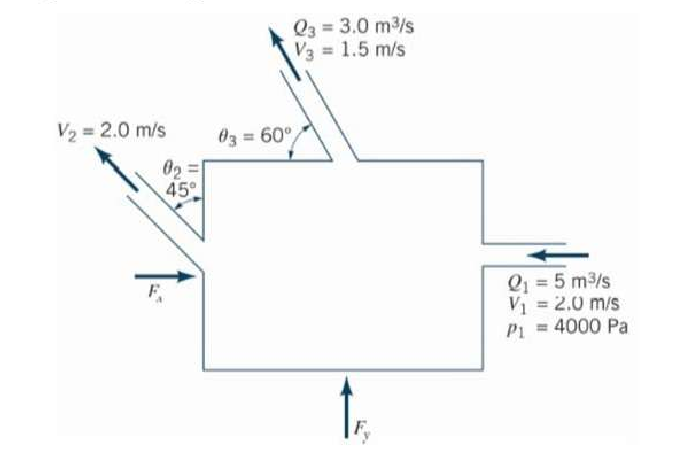

2. Graded ProblemA box with one inlet and two outlets is shown in figure below. The fluid is oil with aspecific gravity (SG) of 0.85. The weight of the oil in the box is 2500 N. Only the outletsare open to the atmosphere. Calculate the force components Fx and Fy required to hold thebox stationary. Neglect the weight of the box.

Question image 1Question image 2
