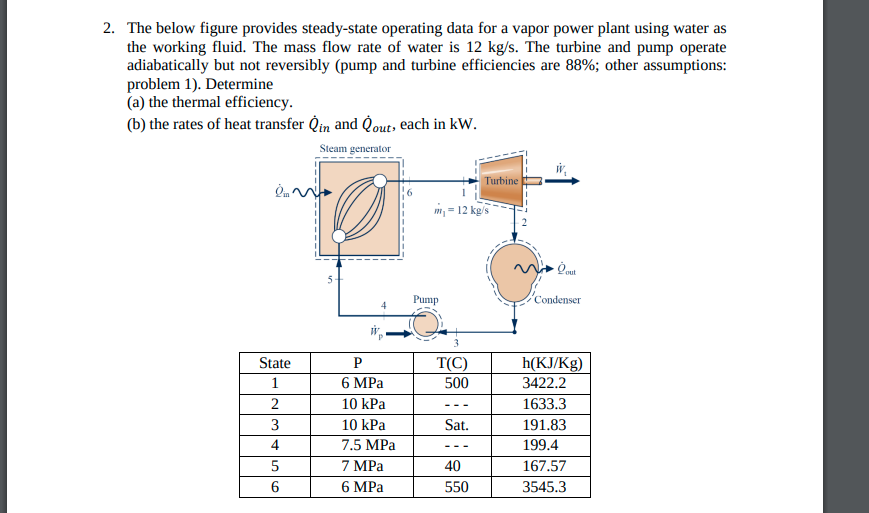

2. The below figure provides steady-state operating data for a vapor power plant using water as

the working fluid. The mass flow rate of water is 12 kg/s. The turbine and pump operate

adiabatically but not reversibly (pump and turbine efficiencies are 88%; other assumptions:

problem 1). Determine

(a) the thermal efficiency.

(b) the rates of heat transfer in and Qout, each in kW.
