Question

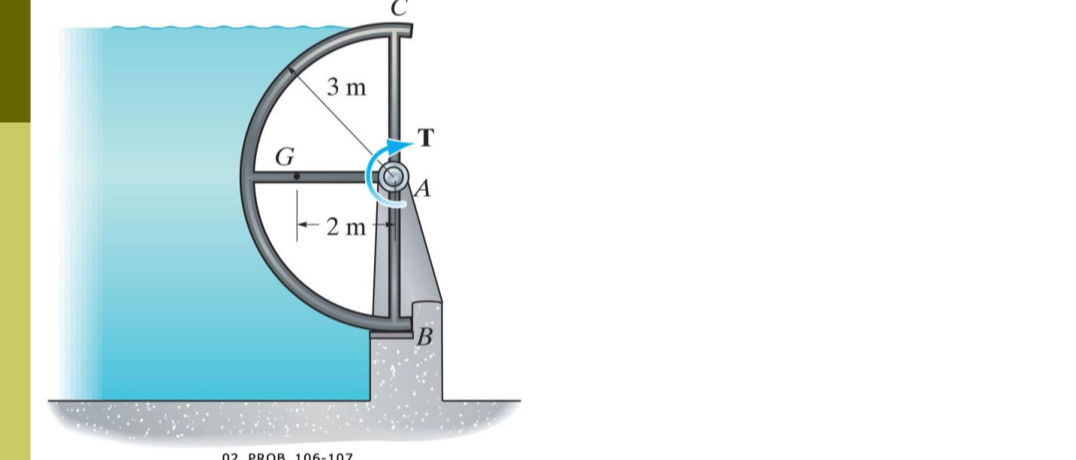

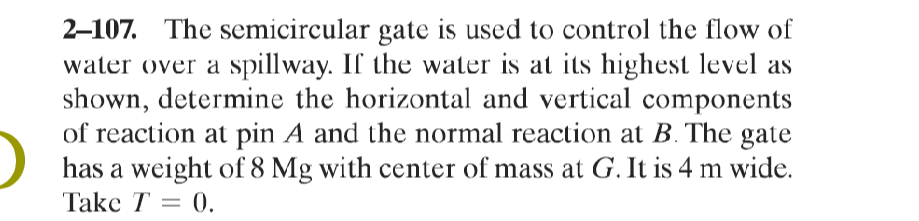

2–107. The semicircular gate is used to control the flow of water over a spillway. If the water is at its highest level as shown, determine the horizontal and vertical

components of reaction at pin A and the normal reaction at B. The gate has a weight of 8 Mg with center of mass at G. It is 4 m wide.Take T = 0.

Question image 1Question image 2
