Question

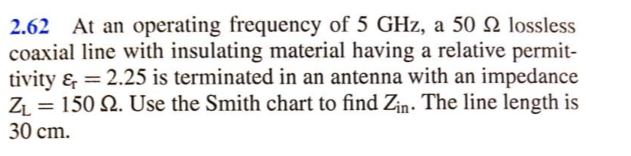

2.62 At an operating frequency of 5 GHz, a 50 N lossless coaxial line with insulating material having a relative permittivity & = 2.25 is terminated in an antenna with

an impedance Z = 150 Q. Use the Smith chart to find Zin· The line length is 30 cm.

Question image 1
