Question

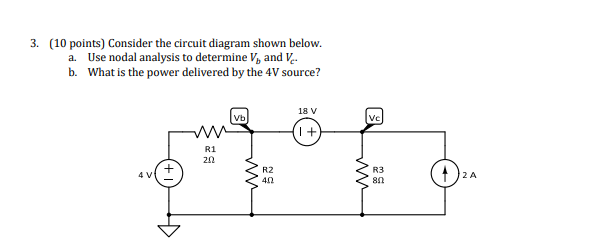

3. (10 points) Consider the circuit diagram shown below.

a. Use nodal analysis to determine V, and V.

b. What is the power delivered by the 4V source?

4 V

R1

20

Vb

R2

402

18 V

1+

m

Vc

R3

80

2A

Question image 1
