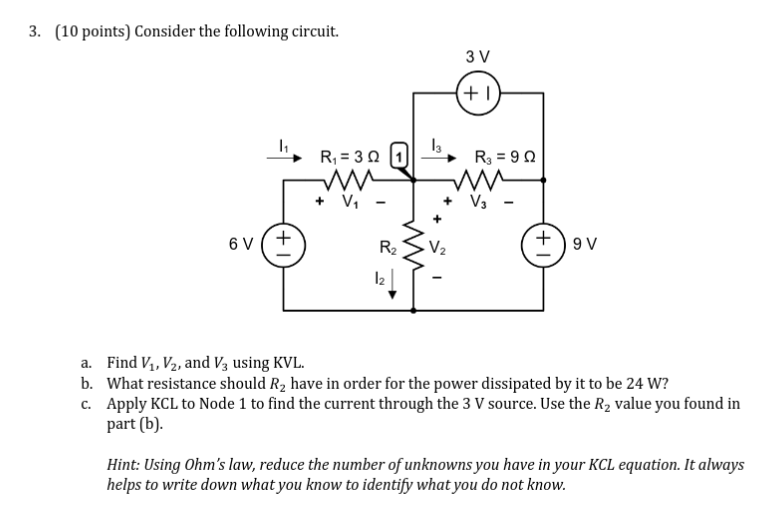

3. (10 points) Consider the following circuit.
R₁ = 30 1
R₂ = 90
a. Find V₁, V₂, and V3 using KVL.
b. What resistance should R₂ have in order for the power dissipated by it to be 24 W?
c. Apply KCL to Node 1 to find the current through the 3 V source. Use the R₂ value you found in
Hint: Using Ohm's law, reduce the number of unknowns you have in your KCL equation. It always
helps to write down what you know to identify what you do not know.
