Question

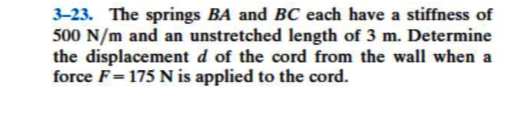

3-23. The springs BA and BC each have a stiffness of500 N/m and an unstretched length of 3 m. Determine the displacement d of the cord from the wall when a force F=175 N is applied to the cord.

Question image 1Question image 2
