Question

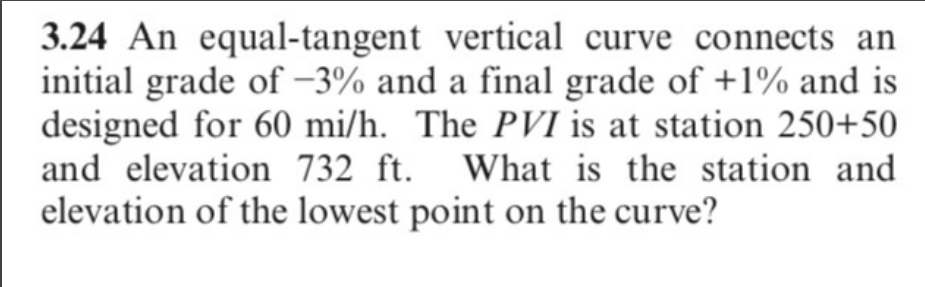

3.24 An equal-tangent vertical curve connects an

initial grade of -3% and a final grade of +1% and is

designed for 60 mi/h. The PVI is at station 250+50

and elevation 732 ft. What is the station and

elevation of the lowest point on the curve?

Question image 1
