Question

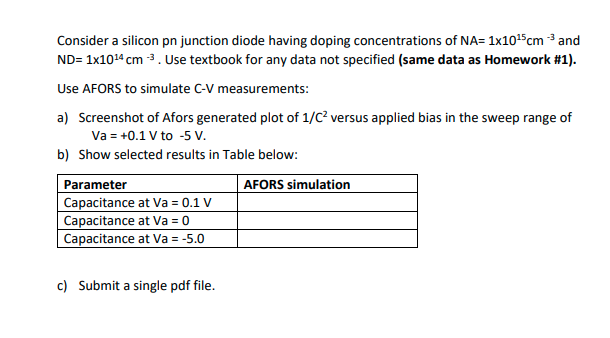

-3 Consider a silicon pn junction diode having doping concentrations of NA= 1x10¹5 cm ³ and ND= 1x10¹4 cm -3. Use textbook for any data not specified (same data as Homework #1). Use AFORS to simulate C-V measurements: a) Screenshot of Afors generated plot of 1/C² versus applied bias in the sweep range of Va = +0.1 V to -5 V. b) Show selected results in Table below: Parameter Capacitance at Va = 0.1 V Capacitance at Va = 0 Capacitance at Va = -5.0 c) Submit a single pdf file. AFORS simulation
Question image 1
