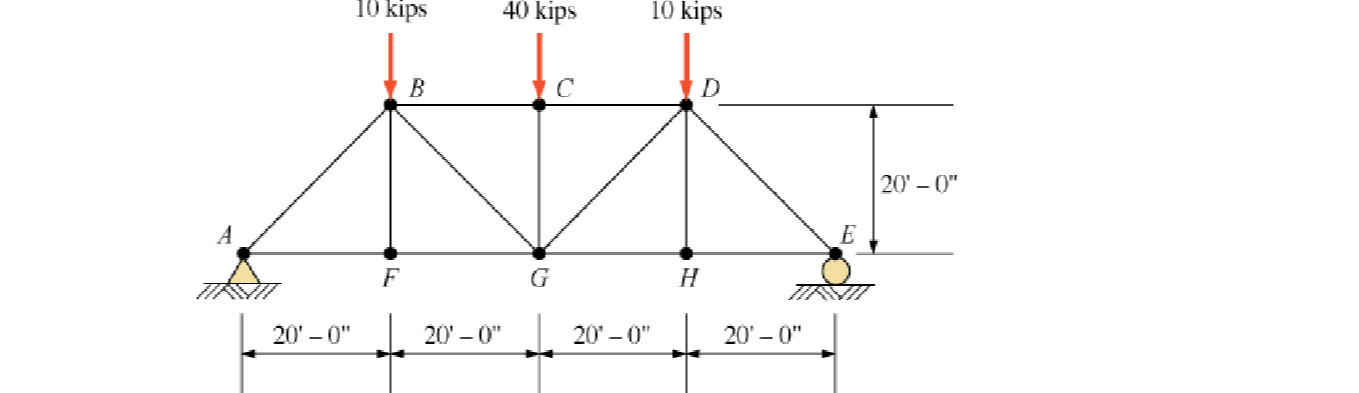

3. The structure below is supported by a pin at A and a roller at E. Use the method of joints to find the pin reactions at A, B, and F. Use the method of sections to find the forces in members CD, GD, and GH.

Question image 1Question image 2
