Question

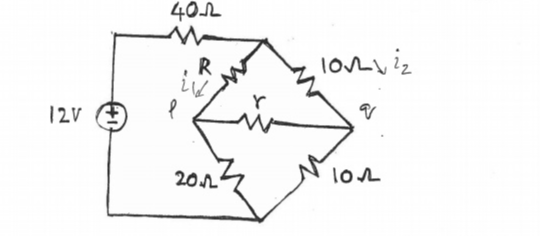

4. (a) What is the value of R if the current through the resistor r is zero, (b) For the value of R in part (a), what is the current

through the voltage source? 4. (a) What is the value of R if the current through the resistor r is zero, (b) For the valueof R in part (a), what is the current through the voltage source?

Question image 1Question image 2Question image 3
