Question

4)

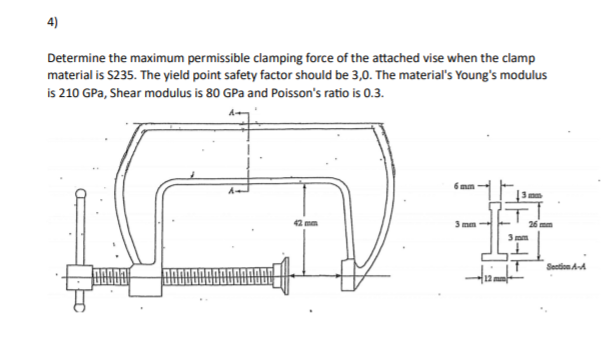

Determine the maximum permissible clamping force of the attached vise when the clamp

material is $235. The yield point safety factor should be 3,0. The material's Young's modulus

is 210 GPa, Shear modulus is 80 GPa and Poisson's ratio is 0.3.

42mm

6 mm

3mm

Section A-A

Question image 1
