Question

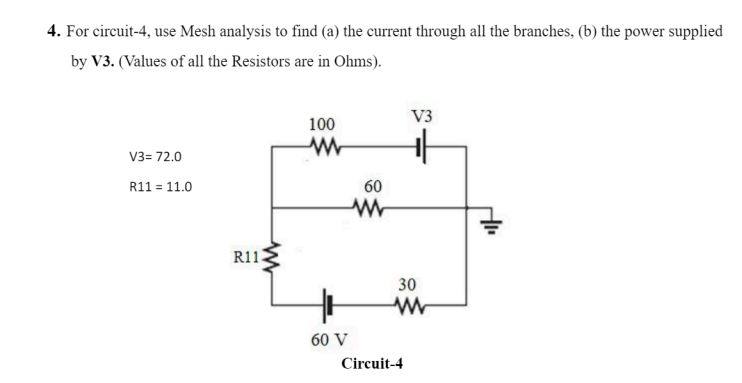

4. For circuit-4, use Mesh analysis to find (a) the current through all the branches, (b) the power supplied by V3. (Values of all the Resistors are in Ohms). V3 100 V3= 72.0 R11 11.0 www 60 www www R11. 60 V 30 www Circuit-4
Question image 1
