Question

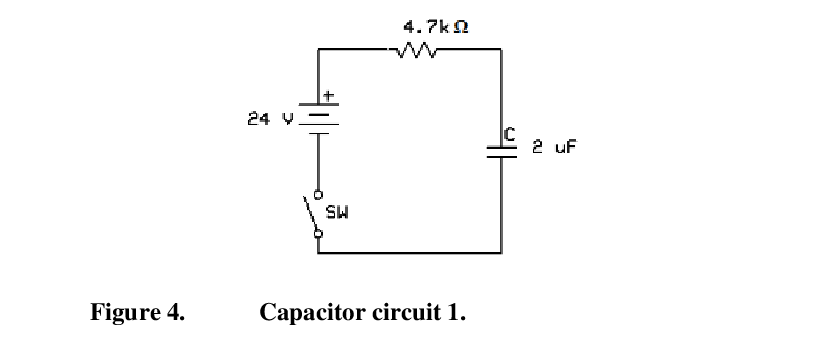

4)Determine the current through and voltage across the capacitor in Figure 4 at time, t =5 ms, 13 ms and 20 ms. Sketch the wave forms for the capacitor voltage

and current as a function of time.

Question image 1Question image 2
