Question

. (5 pts.) For the system shown below (open-loop poles are marked and the system has4no finite open-loop zeros): (a) Sketch the root locus. (b) Find the breakaway point. (c)

Find the range of K, where the system is stable

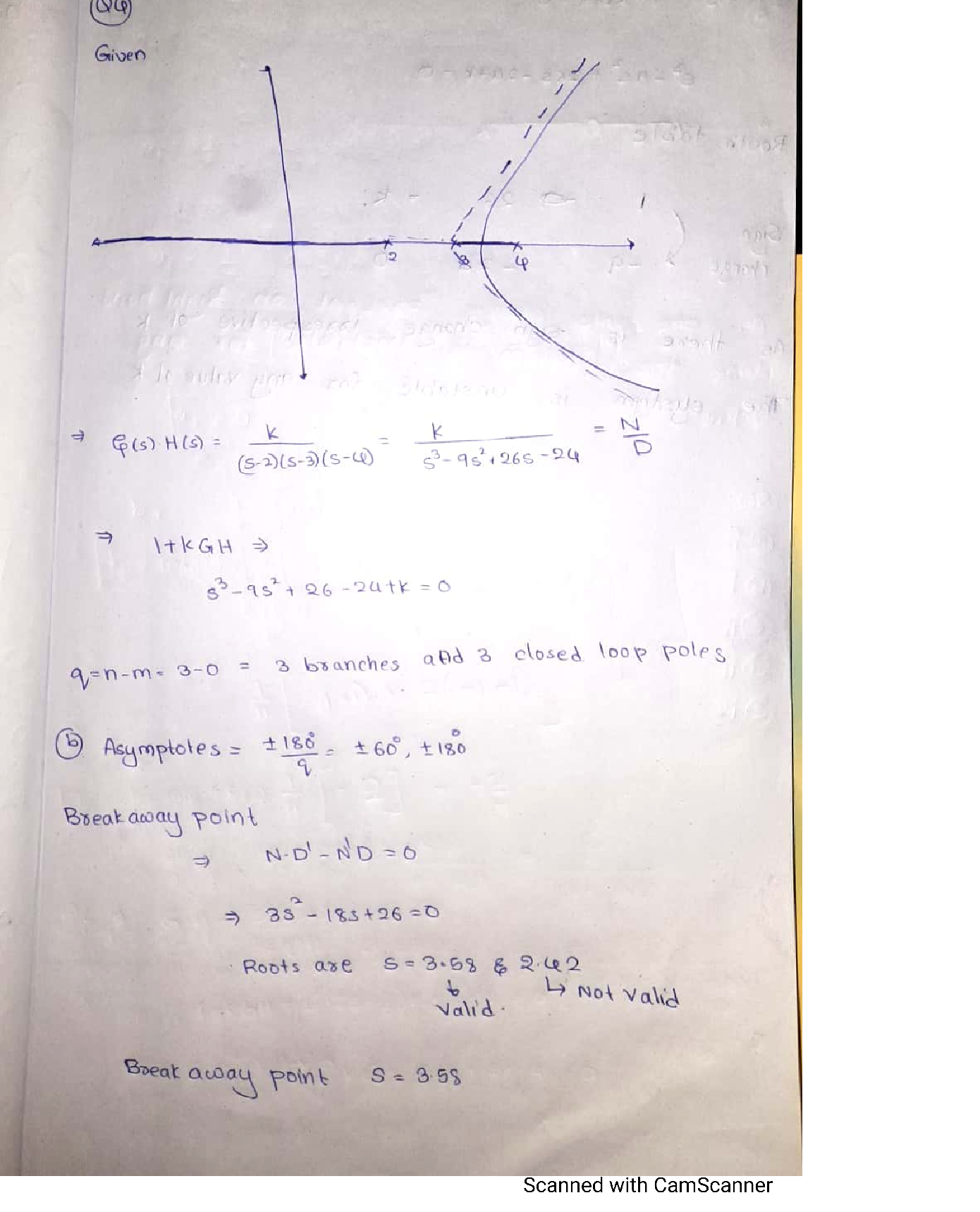

Fig: 1
