Question

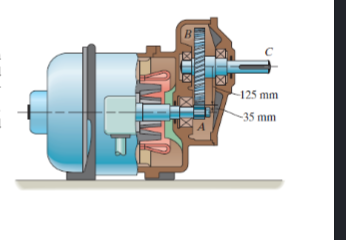

5. The pinion gear A on the motor shaft is given a

constant angular acceleration a = 3 rad/s². If the gears A and

B have the dimensions shown, determine the angular

velocity and angular displacement of the output shaft C,

when t = 2 s starting from rest. The shaft is fixed to B and

turns with it.

Question image 1
