Question

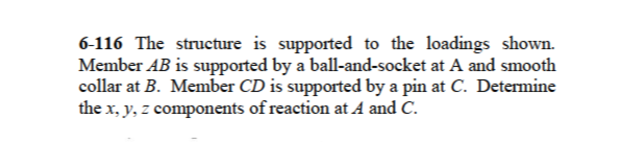

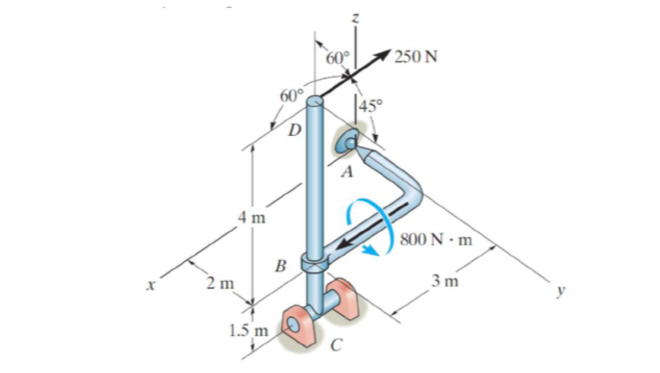

6-116 The structure is supported to the loadings shown.Member AB is supported by a ball-and-socket at A and smooth collar at B. Member CD is supported by a pin at C. Determine the x, y, z components of reaction at A and C.

Question image 1Question image 2Question image 3
