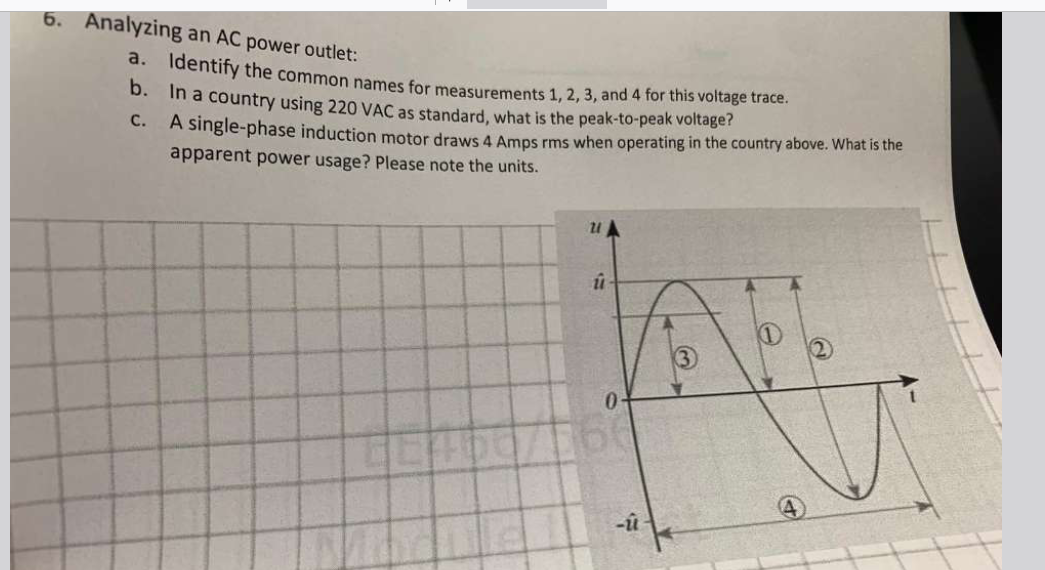

6. Analyzing an AC power outlet:

a. Identify the common names for measurements 1, 2, 3, and 4 for this voltage trace.

In a country using 220 VAC as standard, what is the peak-to-peak voltage?

b.

C.

A single-phase induction motor draws 4 Amps rms when operating in the country above. What is the

apparent power usage? Please note the units.

21

û

0-

-û

(1)

J
