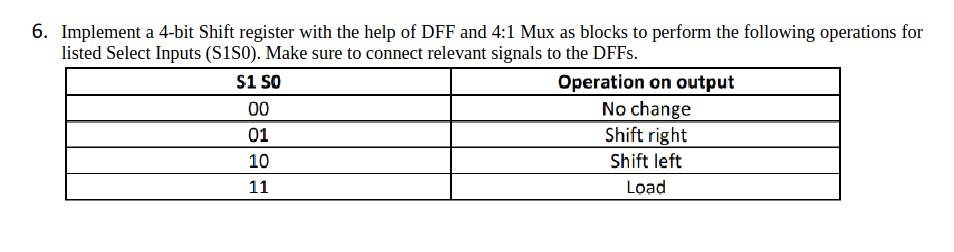

6. Implement a 4-bit Shift register with the help of DFF and 4:1 Mux as blocks to perform the following operations for listed Select Inputs (S1S0). Make sure to connect relevant signals to the DFFs. Operation on output $1 SO 00 01 10 11 No change Shift right Shift left Load
