Question

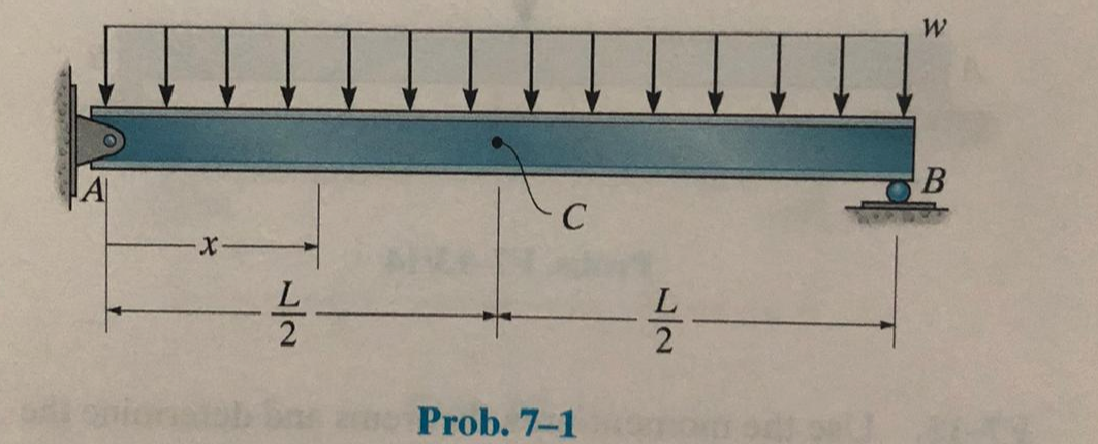

6. Problem 7-1 but change the support at A from pinned to fixed. This will make the beam statically indeterminate, but the problem can be solved using methods of integration

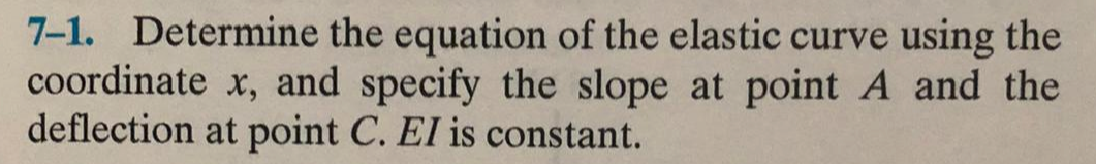

and solving for the appropriate boundary conditions. 7-1. Determine the equation of the elastic curve using the coordinate x, and specify the slope at point A and the deflection at point C. El is constant.

Question image 1Question image 2Question image 3
