Question

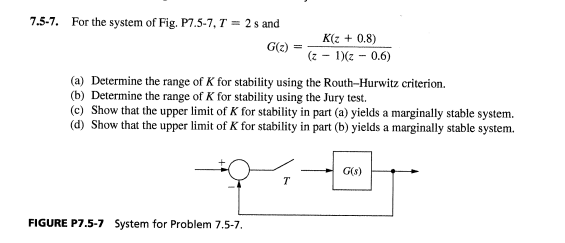

7.5-7. For the system of Fig. P7.5-7, T = 2s and
K(z+0.8)
G(z) =
(z- 1)(z -0.6)
(a) Determine the range of K for stability using the Routh-Hurwitz criterion.
(b) Determine the range of K for stability using the Jury test.
(c) Show that the upper limit of K for stability in part (a) yields a marginally stable system.
(d) Show that the upper limit of K for stability in part (b) yields a marginally stable system.
FIGURE P7.5-7 System for Problem 7.5-7.
G(8)
T
