Question

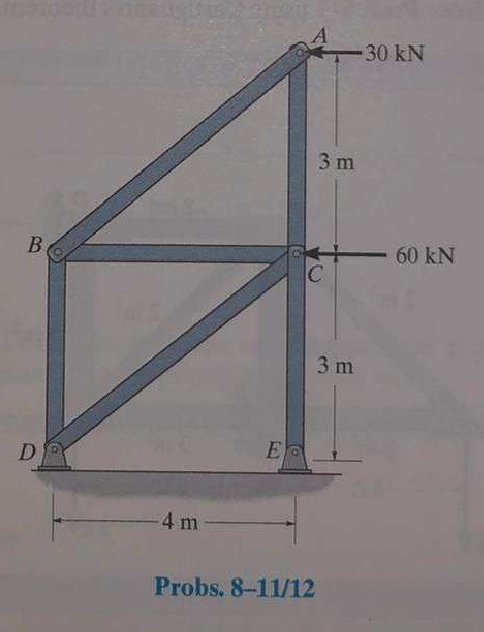

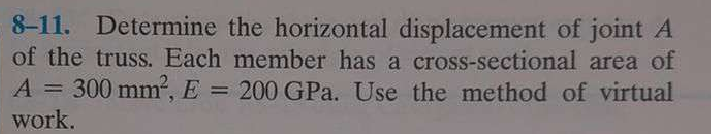

8-11. Determine the horizontal displacement of joint A of the truss. Each member has a cross-sectional area of A = 300 mm, E = 200 GPa. Use the method of

virtual work.

Question image 1Question image 2
