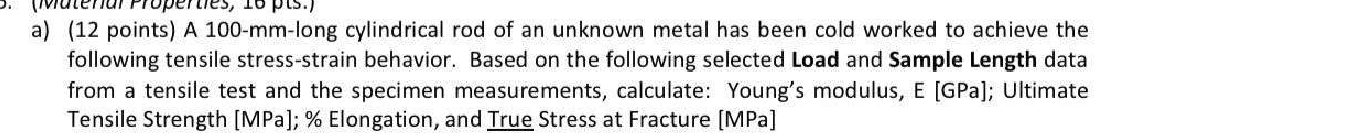

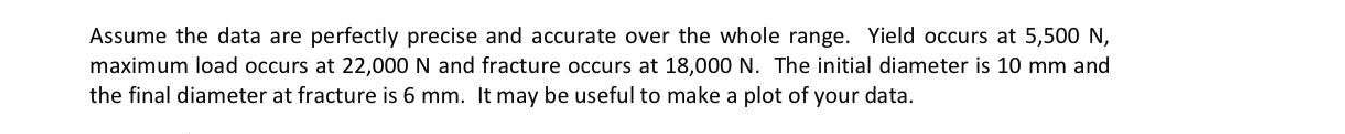

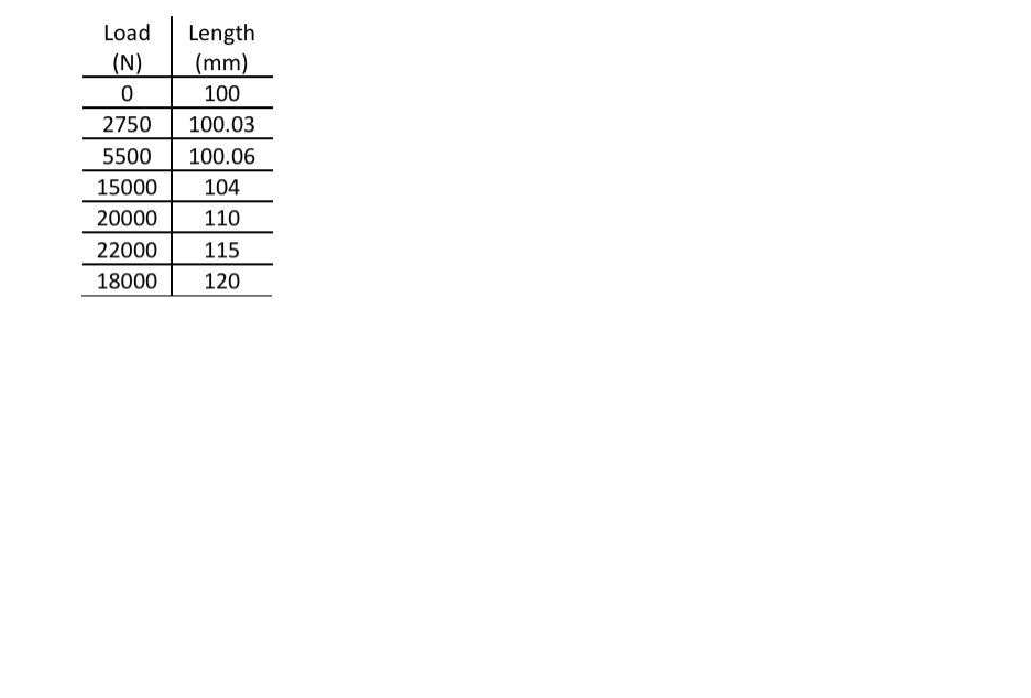

# a) (12 points) A 100-mm-long cylindrical rod of an unknown metal has been cold worked to achieve thefollowing tensile stress-strain behavior. Based on the following selected Load and Sample Length datafrom a tensile test and the specimen measurements, calculate: Young's modulus, E [GPa]; UltimateTensile Strength [MPa]; % Elongation, and True Stress at Fracture [MPa] Assume the data are perfectly precise and accurate over the whole range. Yield occurs at 5,500 N,maximum load occurs at 22,000 N and fracture occurs at 18,000 N. The initial diameter is 10 mm and the final diameter at fracture is 6 mm. It may be useful to make a plot of your data.

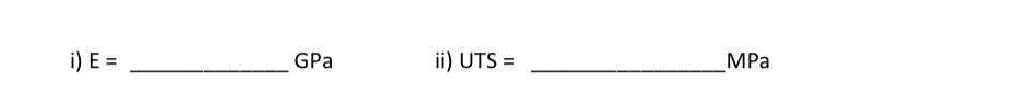

i) E =GPaii) UTS =MPa iii) %EL =iv) OT,fMPa b) (4 points) Based on the plots (on the equation sheet) and your calculations of ultimate tensile strength and ductility, which metal is this and how much was it cold worked before being tested? Metal:_____%CW:_____
